Butterfly Valves

Butterfly Valves

The Qatar Hydraulic Company (QHC) offers a variety of Butterfly valves from reputed manufacturers that have received international approval. We can supply the valves you require to finish your project and maintenance on schedule and with the best quality. We also provide them in the exact specifications you desire, complete with EN 10204 3.1/ 3.2 Materials test certifications and full documentation as per the project requirements

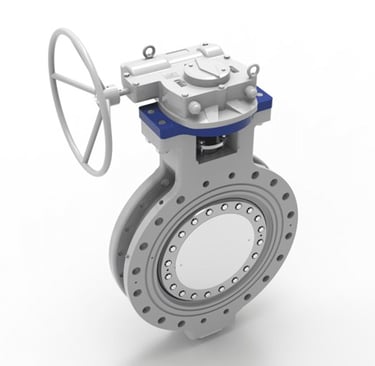

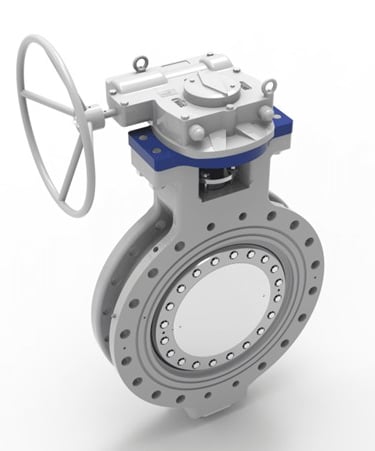

Types: Concentric Rubber Lined, High Performance Double Offset Fire Safe, High Performance Triple Offset Metal Seated Fire Safe, PTFE Lined Valves. & Cryogenic.

• Sizes: 1/2” to 112”

  Pressure Rating: 150, 300, 600, 900, 1500, 2500, # PN6, PN10, PN16, PN25, PN40, PN64 etc.

  Seat Material: EPDM, NBR (Buna-N), FKM (Viton), PTFE, RPTFE, SS316, Alloy 20, Inconel 625, etc.

  End Configurations: Wafer, Lugged end, Raised Face Flange (RF), Ring Type Joint Flange (RTJ), and Flat Face (FF).

  Trim Materials: 410, 304, 316, Alloy 20, Monel 400, Monel 500, Stellite, Inconel 600, Inconel 625, Inconel 601, Hastelloy 276, Alloy 20

  Actuation: Manual, Pneumatic, Electric, Hydraulic

  • Carbon Steel: A216 WCB

  • Low-temperature carbon steel: A352: LCB, LCC

  • Chrome Moly: 217: WC4, WC5,WC6,WC9,C5, C12,C12A

  • Stainless& Duplex stainless Steel: A351: CF8,CF10, CF8M,CF10M, CG8M,CF3,CF3M,CF8C,CH20,CK20, CK3M-CUN, A995 4A, A995 6A A

  • Nickel Alloys: INCONEL 825/A484 CU 5MCuC*, INCONEL 600/A494 CY40*,INCONEL 625 /A494 CW6MC, MONEL 400 /A494 M35-1.
